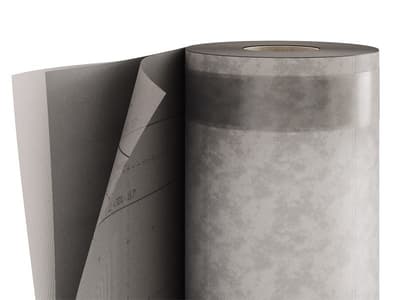

ROTHOBLAAS Traspir Evo 160
Brand: Rothoblaas
Traspir Evo 160
Traspir Evo 160 is a highly breathable monolithic membrane, providing waterproofing, airtightness, containing excellent fire behavior (B-s1, d2), and is extremely UV stable.
Consisting of a monolithic extruded elastomeric film between two polypropylene protection layers, and is designed for installation on the inner and outer side of the roof.
Produced with a unique self-extinguishing membrane, in case of a fire this membrane does not spread the flame which in result contributes greatly to the protection of the structure. The monolithic structure of the TRASPIR EVO 160 membrane guarantees excellent durability over time due to its special composition.
Features- Highly Breathable
- Waterproofing
- Airtightness
- Excellent Fire Resistance
- Monolithic Membrane
- Self-Extinguishing Membrane
- Integrated Double Adhesive Strip
- Strong UV Stability
- Long-Lasting Durability
UV TESTING:
UV stability with total exposure to radiation without any protection: The membrane passed the artificial ageing test exceptionally well, which requires exposure to UV light for 1000 hours.
Displaying prices & availability for Ohio, United States in CAD. Change location.
Models matching criteria: 2
ROTHOBLAAS Traspir Evo 160
view more
| ROTHOBLAAS Traspir Evo 160 1.5M X 50M (with integrated tape) - Mechanically Fastened Membrane |
3 In Stock
$383.91
CAD
$60.00 Shipping
ROTHOBLAAS Traspir Evo 160
view more
Traspir Evo 160
Traspir Evo 160 is a highly breathable monolithic membrane, providing waterproofing, airtightness, containing excellent fire behavior (B-s1, d2), and is extremely UV stable.
Consisting of a monolithic extruded elastomeric film between two polypropylene protection layers, and is designed for installation on the inner and outer side of the roof.
Produced with a unique self-extinguishing membrane, in case of a fire this membrane does not spread the flame which in result contributes greatly to the protection of the structure. The monolithic structure of the TRASPIR EVO 160 membrane guarantees excellent durability over time due to its special composition.
1.5M X 50M (with integrated tape) - Mechanically Fastened Membrane |
3 In Stock
$383.91
CAD
$60.00 Shipping
Specifications
Brand
Height
- 1.5m (5ft.)
Length
- 50m (164ft.)
Total Area
- 75m2 (807 sft)
Thickness
- 0.5 mm
Mass per unit area
- 160 g/m2
Water vapour transmission (Sd)
- 0.1 m
Maximum tensile force MD/CD
- 280 / 220 N/50mm
Tensile strength
- 3.8 N/mm
Elongation MD/CD
- 50 / 60 %
Resistance to nail tearing MD/CD
- 180 / 200 N
Watertightness
- class W1
Temperature resistance
- -40 / 100 °C
Reaction to fire
- class B-s1,d2
Resistance to penetration of air
- < 0.02 m3/(m2h50Pa)
Thermal conductivity (λ)
- 0.4 W/(m∙K)
Specific heat
- 1800 J/(kg∙K)
Density
- approx. 370 kg/m3
Water vapour resistance factor (μ)
- approx. 160
Joint strength
- > 200 N/50mm
VOC content
- 0 %
UV stability
- 6 months
Exposure to weather
- 6 weeks
Water column
- > 500 cm
Driving rain test
- passed
