RB-TRSPEVO160

Series: ROTHOBLAAS Traspir Evo 160 Brand: Rothoblaas

ROTHOBLAAS Traspir Evo 160

Price

$383.91 CAD

Stock

3 In Stock

Quantity

Quantity

Request Information

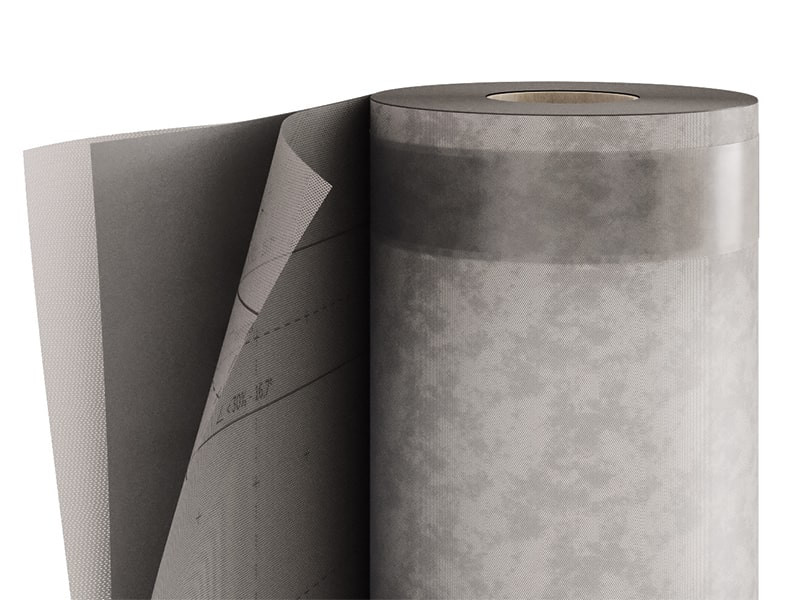

ROTHOBLAAS Traspir Evo 160
1.5M X 50M (with integrated tape) - Mechanically Fastened Membrane

Specifications

Brand

Rothoblaas

Height

1.5m (5ft.)

Length

50m (164ft.)

Total Area

75m2 (807 sft)

Thickness

0.5 mm

Mass per unit area

160 g/m2

Water vapour transmission (Sd)

0.1 m

Maximum tensile force MD/CD

280 / 220 N/50mm

Tensile strength

3.8 N/mm

Elongation MD/CD

50 / 60 %

Resistance to nail tearing MD/CD

180 / 200 N

Watertightness

class W1

Temperature resistance

-40 / 100 °C

Reaction to fire

class B-s1,d2

Resistance to penetration of air

< 0.02 m3/(m2h50Pa)

Thermal conductivity (λ)

0.4 W/(m∙K)

Specific heat

1800 J/(kg∙K)

Density

approx. 370 kg/m3

Water vapour resistance factor (μ)

approx. 160

Joint strength

> 200 N/50mm

VOC content

0 %

UV stability

6 months

Exposure to weather

6 weeks

Water column

> 500 cm

Driving rain test

passed

Documentation

Document
