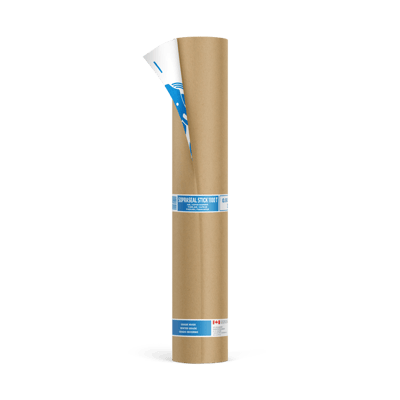

SOPREMA:Sopraseal 1100T Stick Membrane (Above Grade)
Price
$205.13
CAD
Stock
50+ In Stock
Self-adhesive air/vapour barrier membrane composed of SBS modified bitumen and a tri-laminated woven polyethylene facer used on walls. The tri-laminated woven polyethylene is compatible for the use of sprayed polyurethane foam insulation. The underface is covered with a silicone release paper or film. It can also be used as masonry and through-wall flashing membrane as well as waterproofing membrane at openings and transitions.
FeaturesApplication temperatures:
Winter grade: 14 to 50°F (-10 to 10°C)
Summer grade: 50 to 122°F (10 to 50°C)
Service temperatures:
Winter grade: -49 to 194°F (-45 to 90°C)
Summer grade: -49 to 194°F (-45 to 90°C)
UV exposure up to 90 days
Specifications
Brand
Height
- 0.91m (3ft.)
Length
- 22.9m (75ft.)
Thickness
- 1 mm
Weight
- 1.0 kg/m2 (0.2 lb/ft2)
Tensile strength, MD/XD
- 13.1 / 9.6 kN/m (74 / 55 lb/in)
Ultimate elongation, MD/XD
- 40 / 25%
Ultimate elongation (bitumen)
- > 1000%
Flexibility at cold temperature
- -35 °C (-31 °F)
Flow at 110 °C
- Pass
Dynamic puncture
- 575 N (129 lbf)
Tear resistance, MD/XD
- 535 / 245 N (120 / 55 lbf)
Lap adhesion
- 2100 N/m (12 lbf/in)
Peel resistance on primed gypsum
- 1180 N/m (7 lbf/in)
Water vapour transmission
- < 2.5 ng/Pa•s•m² (< 0.04 perm)
Air permeability, 75 Pa
- < 0.0005 L/s•m² (< 0.00001 cfm/pi²)
Air leakage resistance
- < 0.002 L/s•m²
Air permeance of membrane
- < 0.001 L/s•m²
