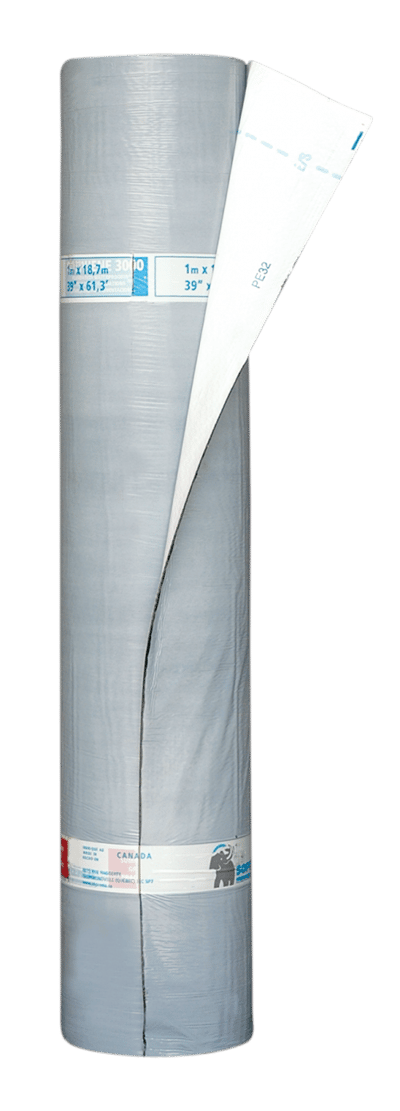

SOPREMA: Colphene 3000 (60 ml) Membrane (Below Grade)
COLPHENE 3000 is a self-adhesive waterproofing membrane, composed of SBS modified bitumen, and a tri-laminated woven polyethylene
facer. The underface is covered with silicone release film.
This product can be used on most building surfaces, such as masonry, concrete and wood.
COLPHENE 3000 is designed to waterproof foundation walls and other below grade vertical surfaces.
Surface Preparation:
The use of SOPRASEAL STICK PRIMER, ELASTOCOL STICK ZERO or ELASTOCOL STICK H2O primer is required before the installation of
COLPHENE 3000 membrane. The substrate should be clean, sound, dry and free of loose materials, grease and any contaminants, which
may compromise the performance of the product.
Installation:
SELF-ADHESIVE
COLPHENE 3000 membrane must be adhered to support by peeling off the silicone release film. Once installed, a pressure must be applied
over the whole surface using a membrane roller to ensure good contact. Side lap joints must be a minimum of 75 mm (3 in) and end lap
joints must be a minimum of 150 mm (6 in). The uppermost edge of the membrane shall be mechanically fastened using termination bars
and sealed with SOPRAMASTIC.
Application temperatures winter formulation: -10 to 10 °C (14 to 50 °F)
Application temperatures summer grade: 10 to 50 °C (50 to 122 °F)
UV exposure: up to 60 days
Benefits:
- High tensile strength and puncture resistance
- Greater flexibility
- Consistent thickness
Properties:
Surface: Tri-laminated woven polyethylene
Underface: Silicon release film
Function: Waterproofing
Product role: Waterproofing membrane
Building Component: Foundations
Application: Self-adhesive
Material: SBS modified bitumen
Restriction:
Concrete must be cured a minimum of fourteen (14) days and an adhesion test is recommended before membrane application.
- High tensile strength and puncture resistance.
- Greater flexibility.
- Consistent thickness.
- This product can be used on most building surfaces, such as masonry, concrete, wood and ICF foundations.
