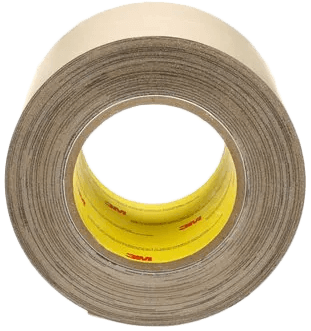

Images are representations only.
3015 Air & Vapour Barrier Tape
Brand: 3M
The 3M™ Air and Vapour Barrier 3015 is a translucent membrane that uses an acrylic adhesive that provides an extended application temperature range between -18° to 66° C (0° to 150° F).
It does not require primer for most substrates and can withstand up to twelve months of UV exposure.
The 10-mil engineered sheet membrane self-seals against nails and staples. It also conforms to contours for continuous bonded contact and is eligible for LEED® Green Building program credits.
The 3M™ Air and Vapour Barrier 3015 features a 10-mil engineered sheet membrane which self-seals against nails and staples. It also conforms to contours for continuous bonded contact and is eligible for LEED® Green Building program credits.
Features- Impermeable to air, moisture, vapor and water
- Excellent adhesion to concrete, concrete block, anodized aluminum, galvanized metal, plywood and most exterior gypsum boards
- Multi-layer elastomeric film self-seals to prevent moisture intrusion
- Apply at surface temperatures as low as 0° F (-18° C) or as high as 150° F (66° C)
- Translucent film allows accurate placement of nail fasteners
- Features measurement markings at 6 inch grid intersections for ease in alignment and cutting
- Lighter weight than competitive products for easier handling and less fatigue
- Adheres to damp surfaces that have not yet absorbed water, like metals, glass and plastics
- Compatible with many building sealants
Specifications
Brand
Product Type
- Air and Vapour Barrier, Flashing Accessory, Membrane and Flashing
Application Method
- Self-Adhered
Adhesive Type
- Acrylic
Application Temperature
- -18° to 66° C
Backing Material
- Multilayer Elastomeric Film, Proprietary Film
Backing Thickness
- 5 mil (0.127 mm)
Color
- Tan
- Semi-Transparent
Elongation
- 7%
Overall Length
- 25 yd, 75 ft (22.86 m)
Overall Thickness
- 10 mil (0.254 mm)
Overall Width
- 12 in (30.48 cm), 18 in (45.72 cm), 2.37 in (60.32 mm), 36 in (91.44 cm), 4 in (101.6 mm), 48 in (121.92 cm), 6 in (15.24 cm), 9 in (22.86 cm)
Permeability
- Non-Permeable, Permeable
Primary Liner
- Polycoated Kraft
Size
- 12 in x 75 ft (30.48 cm x 22.86 m)
- 18 in x 75 ft (45.72 cm x 22.86 m)
- 2.37 in x 25 yd. (60.32 mm x 22.86 m)
- 2.37 in x 75 ft (60.32 mm x 22.86 m)
- 36 in x 75 ft (91.44 cm x 22.86 m)
- 4 in x 75 ft (101.6 mm x 22.86 m)
- 48 in x 75 ft (121.92 cm x 22.86 m)
- 6 in x 75 ft (15.24 cm x 22.86 m)
- 9 in x 75 ft (22.86 cm x 22.86 m)
Tensile Strength
- 1740 lb/in
Units per Case
- 1, 12, 4, 8
- Air, vapor and water barrier for new and remedial commercial and multi- residential construction
- Installed on exterior wall sheathing and behind exterior cladding
- Transition building envelope from one substrate to another, or other openings and penetrations
